安盟身份认证系统模拟测试客户端

NTRadPing.exe

(国外测试软件)

NTRadPing Test Utility 使用说明

(国外开源软件)

NTRadPing is a useful tool for testing installations of your RADIUS servers. Through NTRadPing you can simulate authentication and accounting requests and send them to the RADIUS server making NTRadPing act as a NAS client.

Before you send the request to the server, you need to configure the server IP address, the RADIUS secret key stored in the server clients file, and a username. All the other parameters are optional.

On accounting requests, the "Acct-Session-Id" attribute is also added automatically if you do not explicitly enter it in the request attribute list.

If you issue an accounting request, then the RADIUS attribute "Acct-Status-Type" is added automatically by NTRadPing depending on the type of accounting request you have chosen (start, stop or update).

In the lower left list box you can add as many RADIUS attributes as you like to your request. The list of available attributes and the relevant values in the two drop down boxes depend on the dictionary file RADDICT.DAT.

By checking the "CHAP" checkbox, you may force NTRadPing to issue authentication requests with a CHAP password instead of a default (PAP) password.

In the right list box you will get results about the RADIUS request, along with a complete dump of all the returned RADIUS attributes.

The parameters entered in the main window are preserved even after closing the application (they are stored in the registry).

NTRadPing 是测试 RADIUS认证服务安装是否成功的工具。 通过 NTRadPing，可以模拟身份验证和记账请求，并将它们发送到RADIUS服务器，使NTRadPing充当NAS客户端。

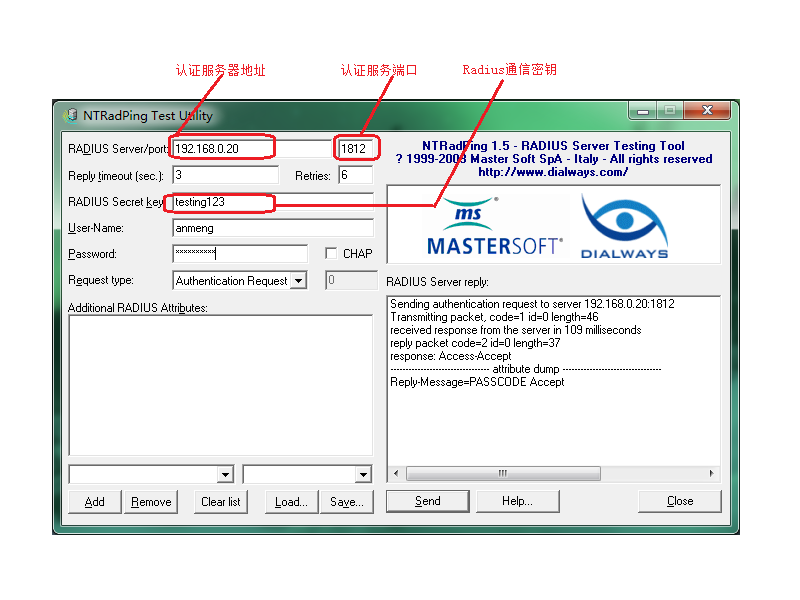

在向服务器发送请求之前，需要配置认证服务器IP地址、注册在服务器客户端文件中的RADIUS密钥和用户名，其他参配置可选。

在记账请求中，如果不显式地在请求属性列表中输入“Acct-Session-Id”属性，也会自动添加该属性。

如果发出记账请求，那么RADIUS属性“Acct-Status-Type”将根据选择的记账请求类型（开始、停止或更新），全部由NTRadPing自动由添加。

在左下角列表框中，您可以向请求添加尽可能多的RADIUS属性。 可用属性列表和两个下拉框中的相关值取决于字典文件RADDICT.DAT

通过检查“CHAP”复选框，可以强制NTRadPing 以 CHAP 密码发出认证请求，而非默认PAP密码发出身份验证请求。

（注意，不勾选就是默认的PAP方式认证。）

在正确的认证中，将得到有关RADIUS请求的结果，以及所有返回的RADIUS属性的完整属性。

即使在关闭应用程序（认证信息存储在注册表中)之后，仍然保留在主窗口中输入的参数。

基本使用

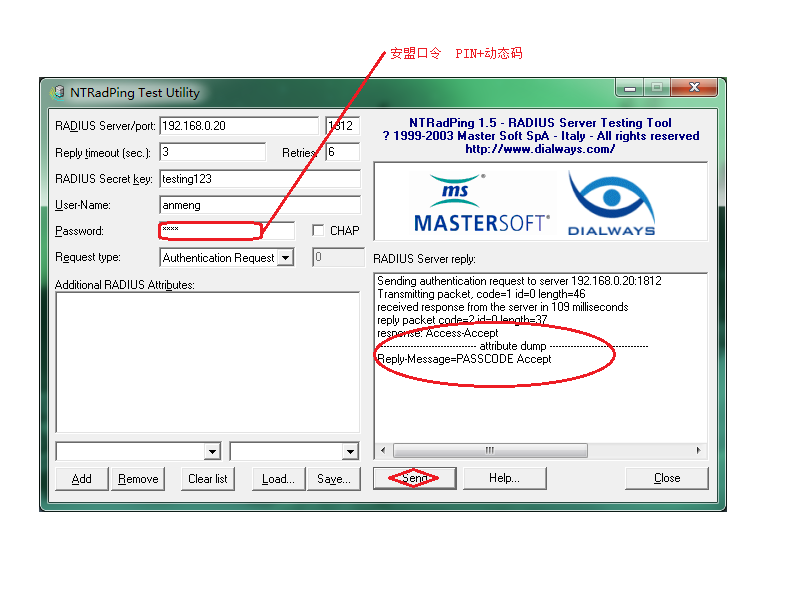

直接认证测试
